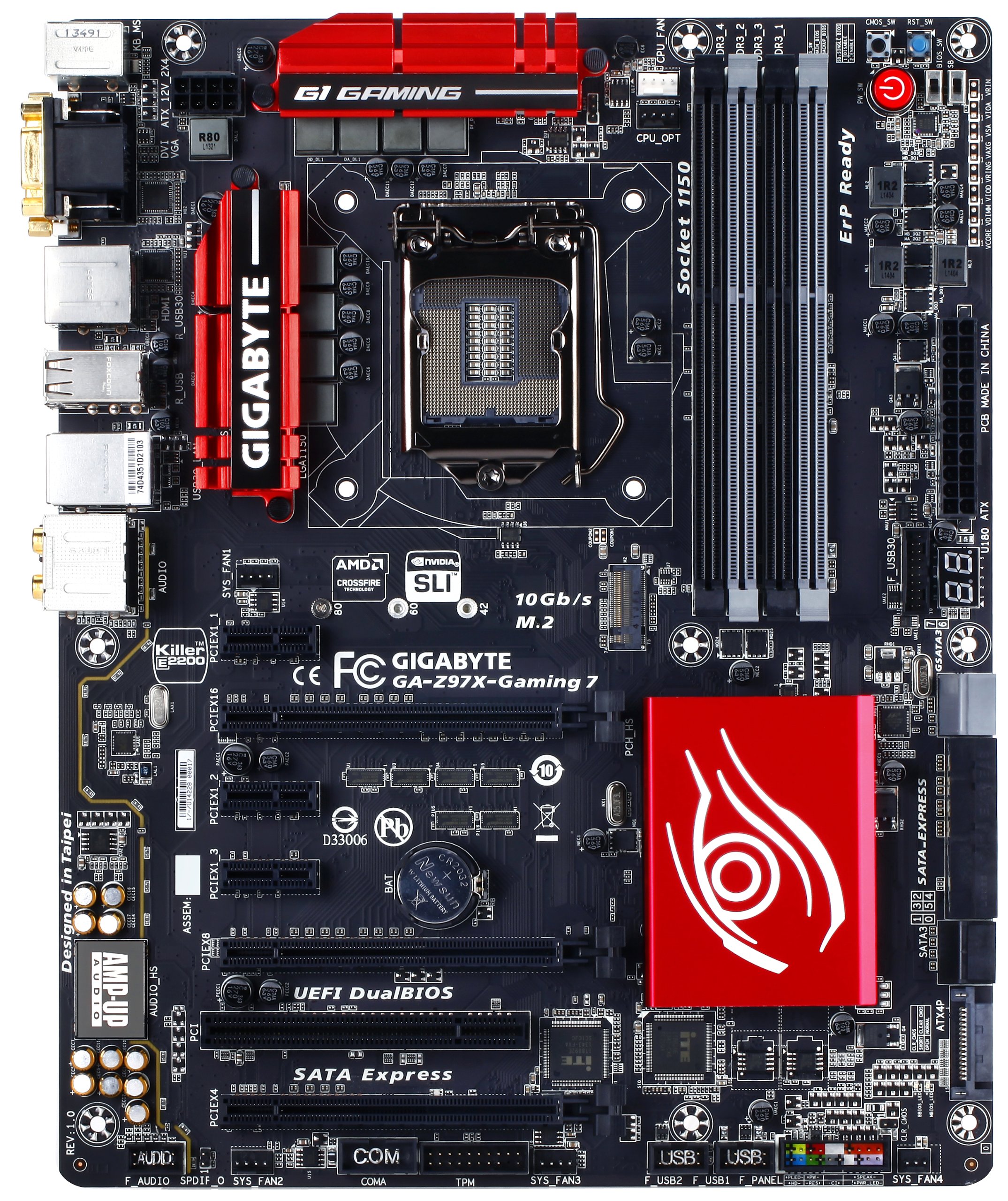

Gigabyte GA-Z97X-GAMING 7 ATX Motherboard - LGA 1150 Socket, Z97 Chipset, High-End Gaming Audio & Networking - Perfect for PC Gaming, Streaming & Content Creation

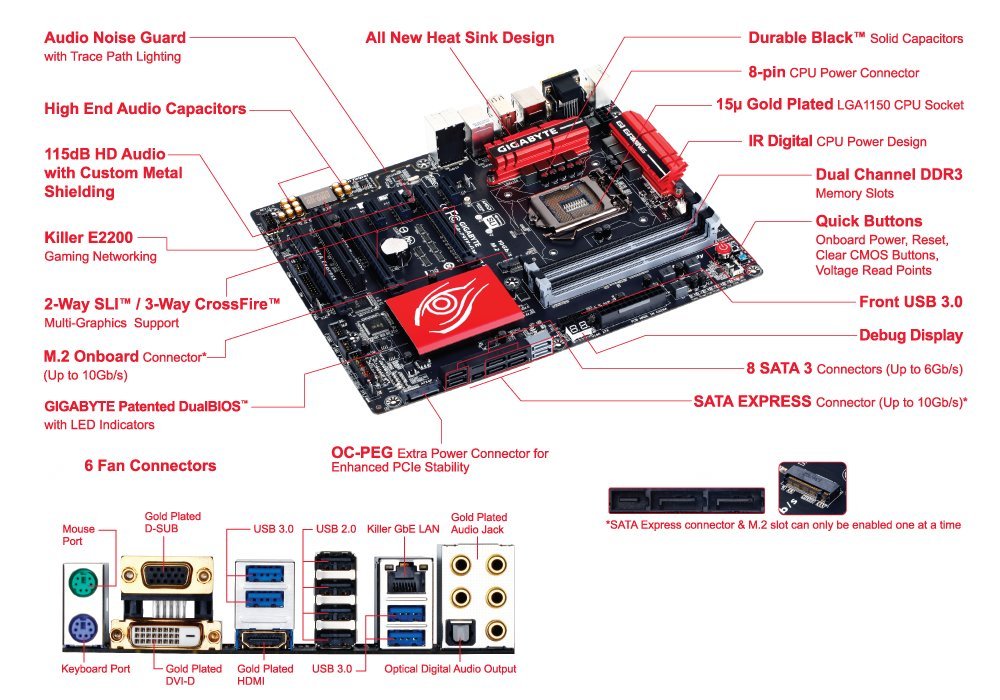

Supports 4th and 5th Generation Intel Core processors Creative SoundBlaster X-Fi MB3 gaming audio suite Audio Noise Guard with LED path lighting Gold plated display and audio ports High end Nichicon audio capacitorsRealtek ALC1150 115dB SNR HD Audio with Built-in rear audio amplifier Killer E2200 gaming networking platform Extreme multi graphics supportSATA Express support for 10 Gb/s data transferM.2 for SSDs drives with up to 10 Gb/s data transfer Long lifespan Durable Black Solid capsAPP Center including Easy Tune and Cloud Station utilities GIGABYTE UEFI Dual BIOS

LGA1150

Chipset Intel Z97 Express

Memory 4x DDR3-3200(OC)/ 3100(OC)/ 3000(OC)/ 2933(OC)/ 2800(OC)/ 2666(OC)/ 2600(OC)/ 2500(OC)/ 2400(OC)/ 2200(OC)/ 2133(OC)/ 2000(OC)/ 1866(OC)/ 1800(OC)/ 1600/ 1333 DIMM Slots, Dual Channel, Non-ECC, Max Capacity of 32GB

Slots 3x PCI-Express 3.0 x16 Slots (one runs at x8, one runs at x4), 3x PCI-Express 2.0 x1 Slots, 1x PCI Slot

Audio Realtek ALC1150 7.1-Channel High Definition Audio CODEC

LAN Qualcomm Atheros Killer E2201 Gigabit Ethernet Controller

Supports 4th and 5th Generation Intel Core processors; Core i7/i5/i3/Pentium/Celeron in the LGA 1150 package

Chipset Intel Z97 Express Chipset

MOTHERBOARD

Memory Support 4 x DDR3 DIMMs supporting up to 32 GB of system memory;

Support for DDR3 3200(O.C.) / 3100(O.C.) / 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666(O.C.) / 2600(O.C.) / 2500(O.C.) / 2400(O.C.) / 2200(O.C.) / 2133(O.C.) / 2000(O.C.) / 1866(O.C.) / 1800(O.C.) / 1600 / 1333 MHz

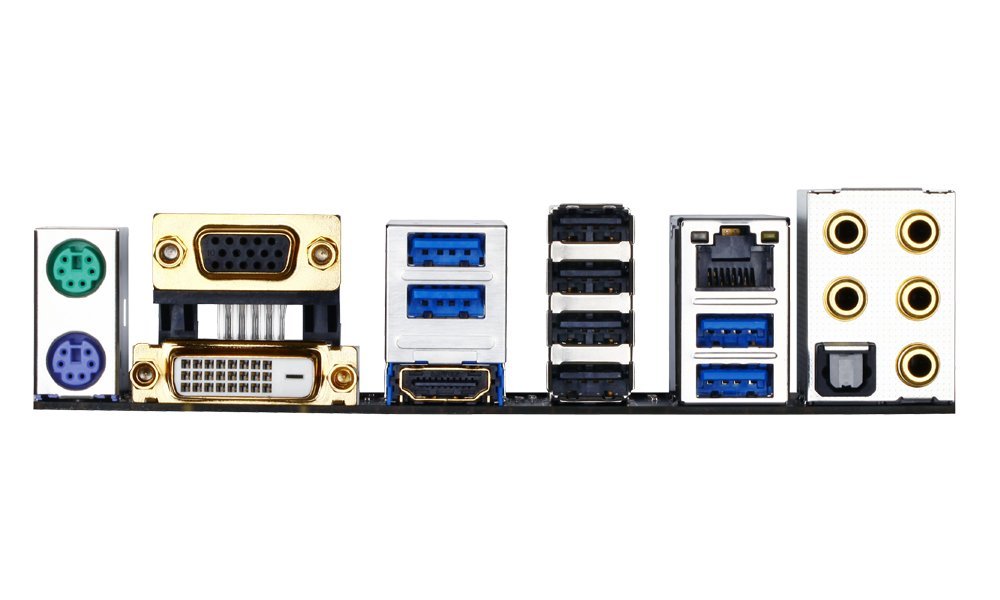

Onboard Graphics 1 x D-Sub port, supporting a maximum resolution of 1920x1200at60Hz; 1 x DVI-D port, supporting a maximum resolution of 1920x1200at60Hz ( The DVI-D port does not support D-Sub connection by adapter.) 1 x HDMI port, supporting a maximum resolution of 4096x2160at24Hz or 2560x1600at60Hz; Support for up to 3 displays at the same time

Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16); 1 x PCI Express x16 slot, running at x8 (PCIEX8); 1 x PCI Express x16 slot, running at x4 (PCIEX4); 3 x PCI Express x1 slots; 1 x PCI slot; Support for 3-Way/2-Way AMD CrossFire and 2-Way NVIDIA SLI Technology

Storage Interface 1 x M.2 PCIe connector; 1 x SATA Express connector; 6 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10; additional 2 x SATA 6Gb/s connectors Support for RAID 0 and RAID 1
